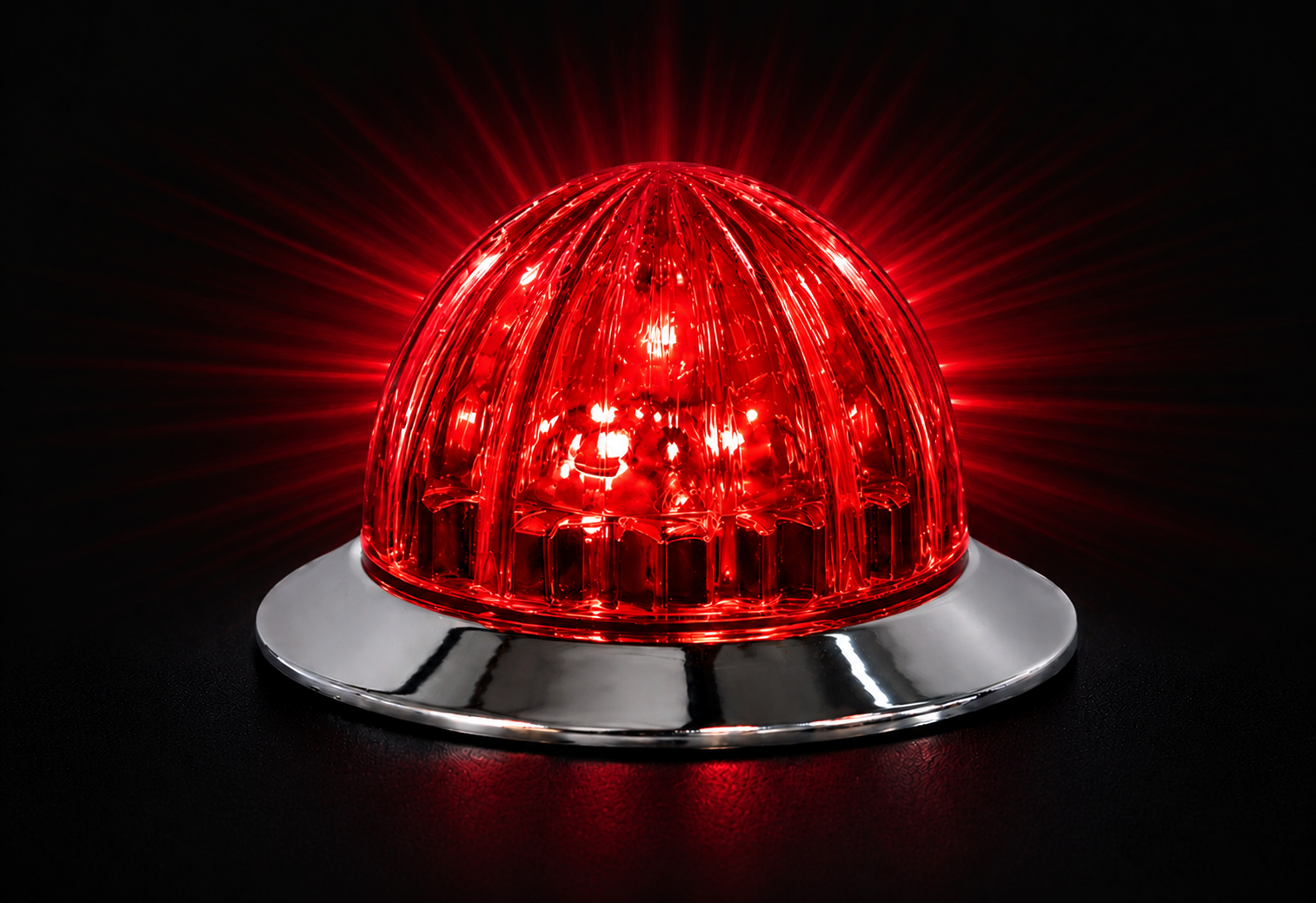

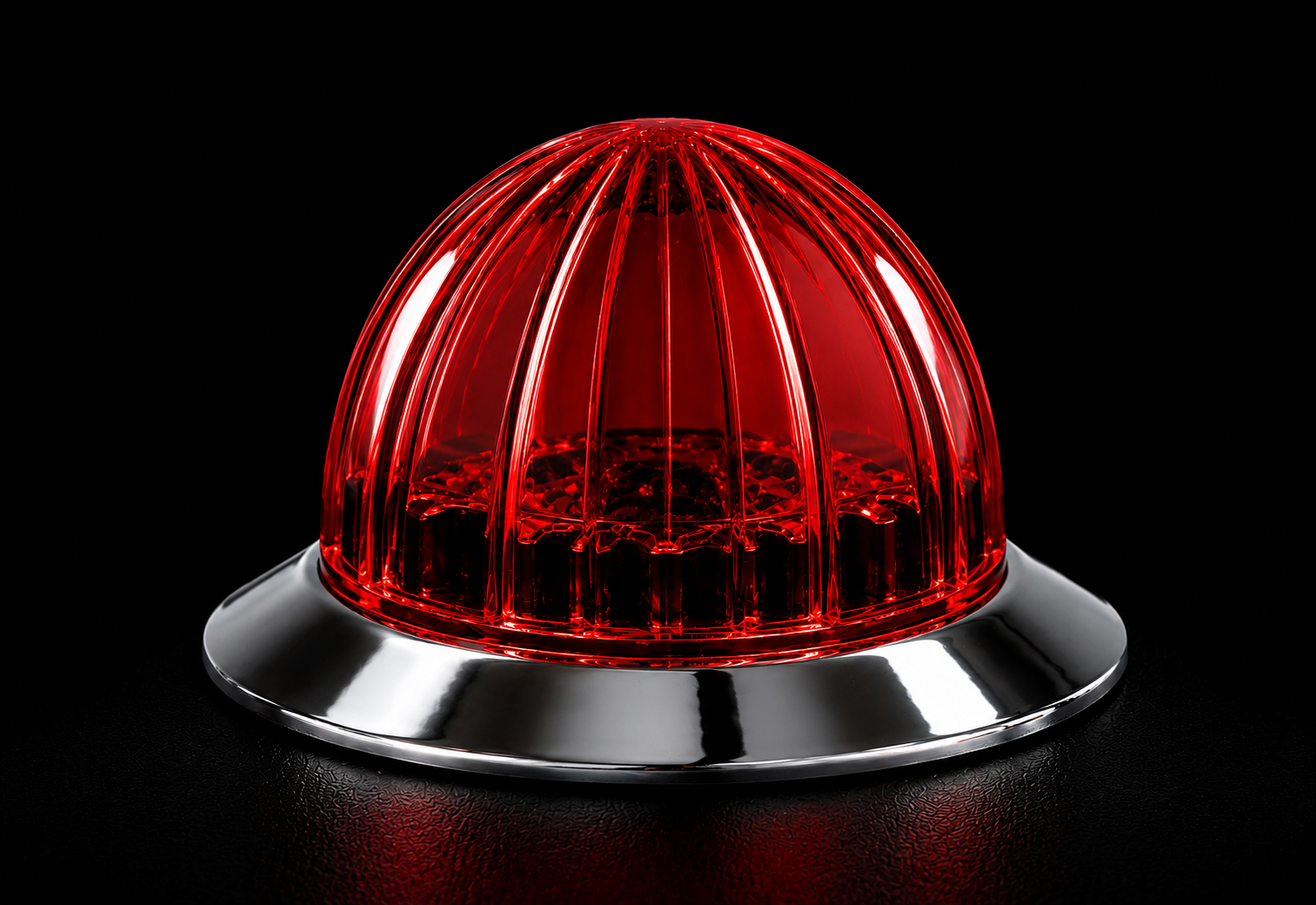

Bring classic styling and reliable performance to your truck or vehicle with the Ground Effects Lighting Mini Watermelon LED. Designed for durability and built using quality materials, these compact marker lights feature both low and high brightness functions, making them perfect for a wide range of applications.
Every light is epoxy sealed to help prevent moisture intrusion and features a tough injection moulded polycarbonate lens for long-lasting performance in harsh Australian conditions.
Features
-
Dual brightness (Low & High)
-
12V DC operation
-
IP67 waterproof rated
-
Epoxy sealed to prevent moisture intrusion
-
Injection moulded polycarbonate lens
-
Chrome plastic bezel
-
Stainless steel mounting thread and retaining nut
-
Pre-wired with 3-wire bullet connectors
-
Compact design suitable for multiple mounting locations
Specifications
| Specification | Details |
|---|---|
| Voltage | 12V DC |
| Brightness | Low & High |
| Waterproof Rating | IP67 |
| Lens Material | Injection Moulded Polycarbonate |
| Bezel Material | Chrome Plastic |
| Mounting Hole | 15.8mm |
| Mounting Nut | M16 Stainless Steel |
| Height | 24mm (mounting surface to top of lens) |
| Base Diameter | 37mm |
| Wiring | 3-Wire Bullet Connectors |
Package Includes
-
1 × Mini Watermelon LED Light
-
1 × Stainless Steel M16 Mounting Nut
Notes
-
Professional installation is recommended.
-
Suitable for 12V DC electrical systems only.
-
Available in multiple LED and lens colour options.
